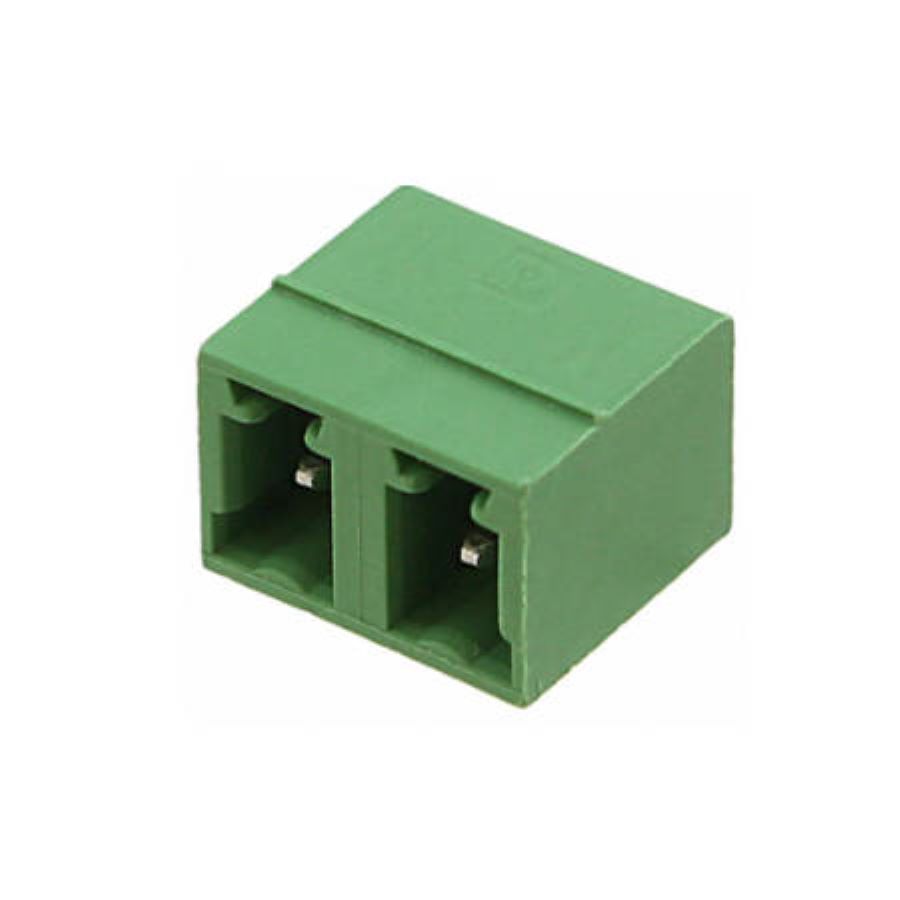

1836189
Manufacturer:
Phoenix Contact
Mfr.Part #:
1836189
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 8 A 300 V
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Width | 10.75 mm |
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.16 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 121.99999 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper, Tin |
| Pitch | 5.08 mm |
| Current | 8 A |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Green |
| Number of Contacts | 2 |
| Connector Type | Plug |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Housing Color | Green |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 250 V |
